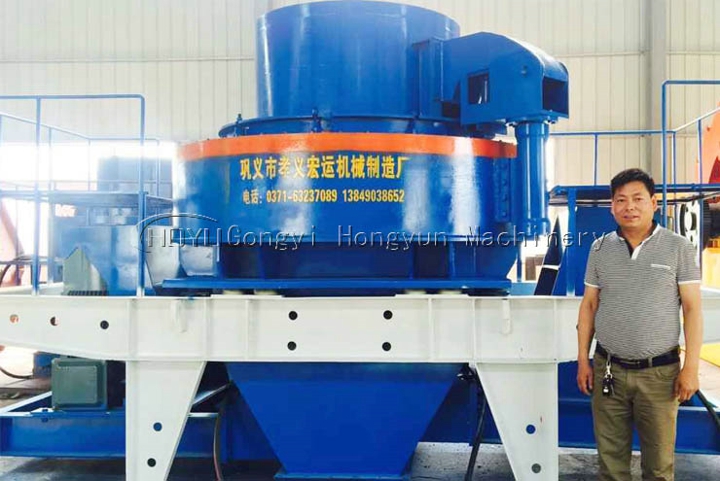

Sand Making Machine
Type: tertiary crusherInput Size: 0-50mm
Moisture range: 3
Processed Materials: Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone, granite, basalt, river stone, coal gangue, quartz.
Applications:
Mechanism sand, bituminous concrete, metal mine, aggregates shaping
E-mail:hyjx@hyjxzzc.com
- Overview
- Features
- Working principle
- Technical data
Sand making machine is the advanced crushing equipment developed by Hongyun Factory based on the present situation about sand making equipments’ application in our country. It is mainly composed of pedestal, holder, vortex crushing cavity, impeller, distributor, main shaft and other parts. Sand making machine is the indispensable fine devoice in the present sand production industry. Using the centrifugal force and impact force which are brought by itselves’ high speed running, the sand making machine can achieve crushing effect to satisfy the sand making industry’s demand of materials’ granularity and size. Besides be used in sand making industry, it can also used to crush harder ore material. It is an ideal crushing equipment which often be used in mineral processing, ore milling, metallurgy, chemical engineering, power industry, water resource industry and other different industries.
Wide application. In addition to crushing gravel materials with remarkable effect, it also has good effect on harder ore material.
High comprehensive utilization value. It can be applied in the different industries.
Vortex crushing chamber and the impeller can form self circulatory system of internal airflow to provide a natural ventilation for using the device.
Using the distributor can improve the performance of the equipment, because it can make the conveying of material more continuous, timing and quantitative.
According to the overall usage of sand making machine, it can be deployed dry oil pump to provide oil for bearing parts regularly.
With double motor drive, the gearing can run smoothly.
With the wear-resisting plate of special material in the crushing cavity of equipment, it can improve usability and wear resistance of the core crushing area.
Holder has detachability. Users can disassemble or assemble it based on the different workplaces.
When entering into impeller, the raw material can be crushed directly by hitting impact plate after it is accelerated and threw out. The raw material can also be divided into two parts by material-dividing plate. One falls down from all around. The other enters into impeller and is accelerated, threw out and collides with the falling material and hit, rebound with impact plate. The circulation hits repeats. As the crushing is moving forward, small particle materials will gradually form a material bed around the impact plate which can improve the crushing effect and protect the machine. The desired artificial sand comes downwards though outlet finally.
| 1. Main technical parameters: |
| model | VSI5X7615 | VSI5X8522 | VSI5X9532 | VSI5X1145 | |
|
Throughput capacity (t/h) |
Center and Ring feeding |
150~280 | 240~380 | 350~540 | 500~640 |
| Center feeding | 70~140 | 120~190 | 180~280 | 250~360 | |
|
Max. Feed Size (mm) |
Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 | |
| Rotation speed (r/min) | 1700~1900 | 1500~1700 | 1300~1510 | 1100~1310 | |
| Power of double motor (KW) | 150 | 220 | 320 | 440 | |
| Overall dimension L×W×H (mm) | 4100×2330×2300 | 4140×2500×2700 | 4560×2600×2900 | 5000×2790×3320 | |
| Weight (t) | 8.6 | 11.8 | 17.5 | 27.5 | |
| Power source | 380v，50Hz | ||||
|
Thin oil lubrication station |
Power for double oil pump |
2 x 0.37 KW | |||
| Safety | To make sure the supply of oil with double oil pump, working without oil, temperature when water cools, start the motor by heating it in winter. | ||||
| Power for oil box heater | 2 KW | ||||
| Overall dimension L×W×H (mm) | 820×520×1270 | ||||
| Note: Capacity depends on crushing limestone, material size, moisture and features also affect capacity. | |||||
| 2. Lubricating system parameter: | |||||
| Oil box volume (L) | 240 | ||||
| Rated pressure (MPa) | 0.63 | ||||
| Flow capacity (L/min) | 8 | ||||
| Power (KW) | 0.31 | ||||
| Cooling water consumption (m3/h) | ≥1.2 | ||||
| Electrical heating voltage (V) | 220 | ||||
| Medium | Bearing oil 32—46# | ||||
