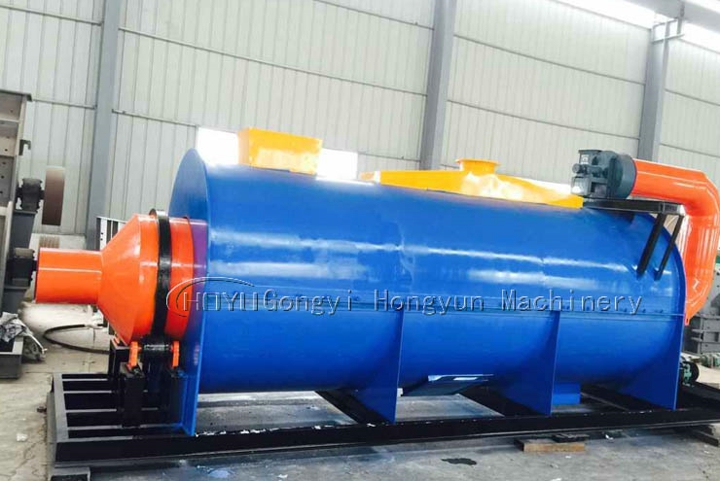

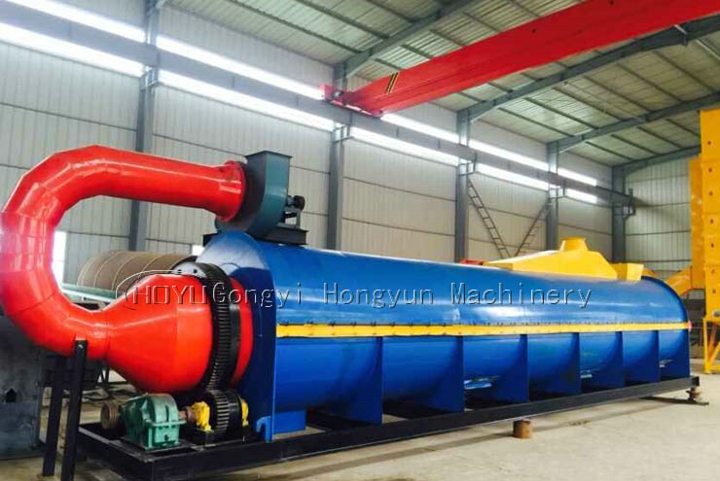

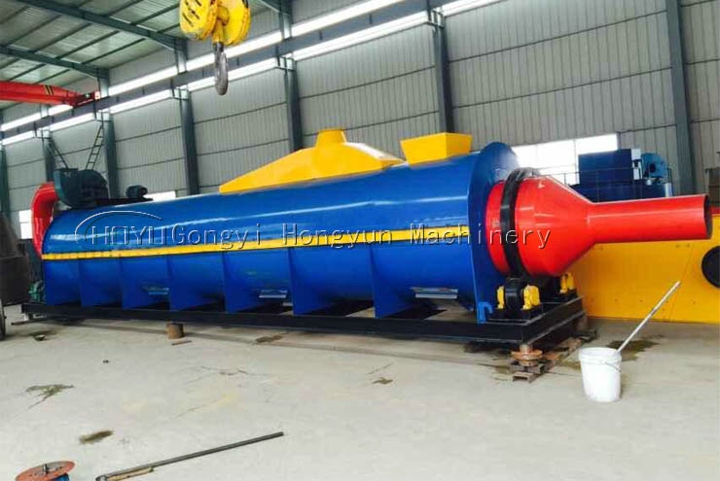

Sand Dryer

Type: Sawdust dryer
Input Size:
Moisture range: 10%-60%
Processed Materials:
Applications:
Sawdust,sand,Distiller's grains,dregs,cocoa powder and so on
E-mail:hyjx@hyjxzzc.com

Overview
Features
Working principle
Technical data

Sand dryer is widely used in building materials, metallurgy, mineral processing, chemical industry, cement, casting and other industries. It can dry high wet and high gravity materials, such as kinds of sand, dry-mixed mortar, cement slag, clay, coal gangue, mixture, fly ash, gypsum, iron powder, limestone, coal, ore, Lan carbon and so on.

Sand is carried by belt conveyor or bucket elevator to the hopper, and then go through the feeding pipe into the feed end by charger. The feed pipe’s slope should be greater than the natural inclination of materials, so that the materials can flow into the sand dryer smoothly. Sand dryer cylinder is a slightly tilted cylinder with the horizontal line. Material is added from high end and heating medium is added from the low end to become countercurrent contact with material. But sometimes they flow into the cylinder together. Materials run to the bottom by gravity with the rotation of cylinder. In this process of moving forward, heating medium give wet material heat directly or indirectly to make them to dry. At the end, the material is sent out by belt conveyor or screw conveyor at the discharger end. There is a lifting board on the inner wall of sand dryer. By putting the material up and down, it increases the contact surface between material and airflow to improve the drying rate and to promote the material to move forward. Heating medium have hot-air, flu gas and some mediums like this. After the heat medium passing the cylinder of sand dryer, the cyclone separator need to gather the material which within the gas. To further reduce exhaust dust content, it also need go through bag filter or hydrofilter.

Sand dryer is mainly consist of feeding device, feeding chute, roller, air heating furnace, hot air duct, front roll ring, rear roller ring, block roller, gear, lifting board, automatic cleaning device, reducer, motor, sealing device, discharging device, power distribution cabinet and other components. In addition, based on customers’ demand, our Gongyi city Xiaoyi Hongyun machinery factory can design the gas generator and combustor with elevator, belt conveyor, quantitative feeder, cyclone dust collector, draught fan and other related devices.

The sand dryer’s price of Gongyi Hongyun factory is just 20% of imported products. It is made of high quality material which is 3-4 times wear-resisting than ordinary material. It can dry the material with 15% moisture and the ultimate moisture can under 0.5%-1% so that it is the preferred drying equipment for enterprise. This device can improve above 40% thermal efficiency than traditional devices. In the process, there is no air leakage with rigorous sealing. It also has good heat preservation system, the temperature of outer barrel is under 60℃, exhaust gas temperature is under 120℃, out-feeding temperature falls below 60℃.The discharging can be packed directly to reduce the comprehensive energy consumption greatly.

Model (mm)		HY-1060		HY-1260	HY-1290	HY-1590	HY-2090
Size(mm)		9000×1500×2000		9000×1700×2200	12000×1700×2200	12000×2000×2500	12000×2500×2800
Capacity (t/h)		0.5-1		1.5-3	2-5	5-10	10-20
Moisture after drying(%)		5%-10%		5%-10%	5%-10%	5%-10%	5%-10%
Heating media		Hot air		Hot air	Hot air	Hot air	Hot air
Hot air temperature(℃)		＜120℃		＜120℃	＜120℃	＜120℃	＜120℃
Main fan		Y5-47-5C-5.5KW			Y5-47-5C-7.5KW
Dedusting fan		4-72-3.2A-2.2KW			4-72-3.6A-3KW
Adjustable-speed motor		4P-4KW	4P-4KW		4P-4KW	4P-5.5KW	4P-7.5KW
Hot blast stove	Inside diam	1500mm	1500mm		1800mm	1800mm	2000mm
	Gas capacity	1200-1600 Nm³/h	1200-1600 Nm³/h		1500-2100 Nm³/h	1500-2100 Nm³/h	1750-2500 Nm³/h
Dust catcher *(diamhigh) (m)**		1*1.8	1.2*2.2		1.2*2.2	1.5*2.5	1.5*2.5
